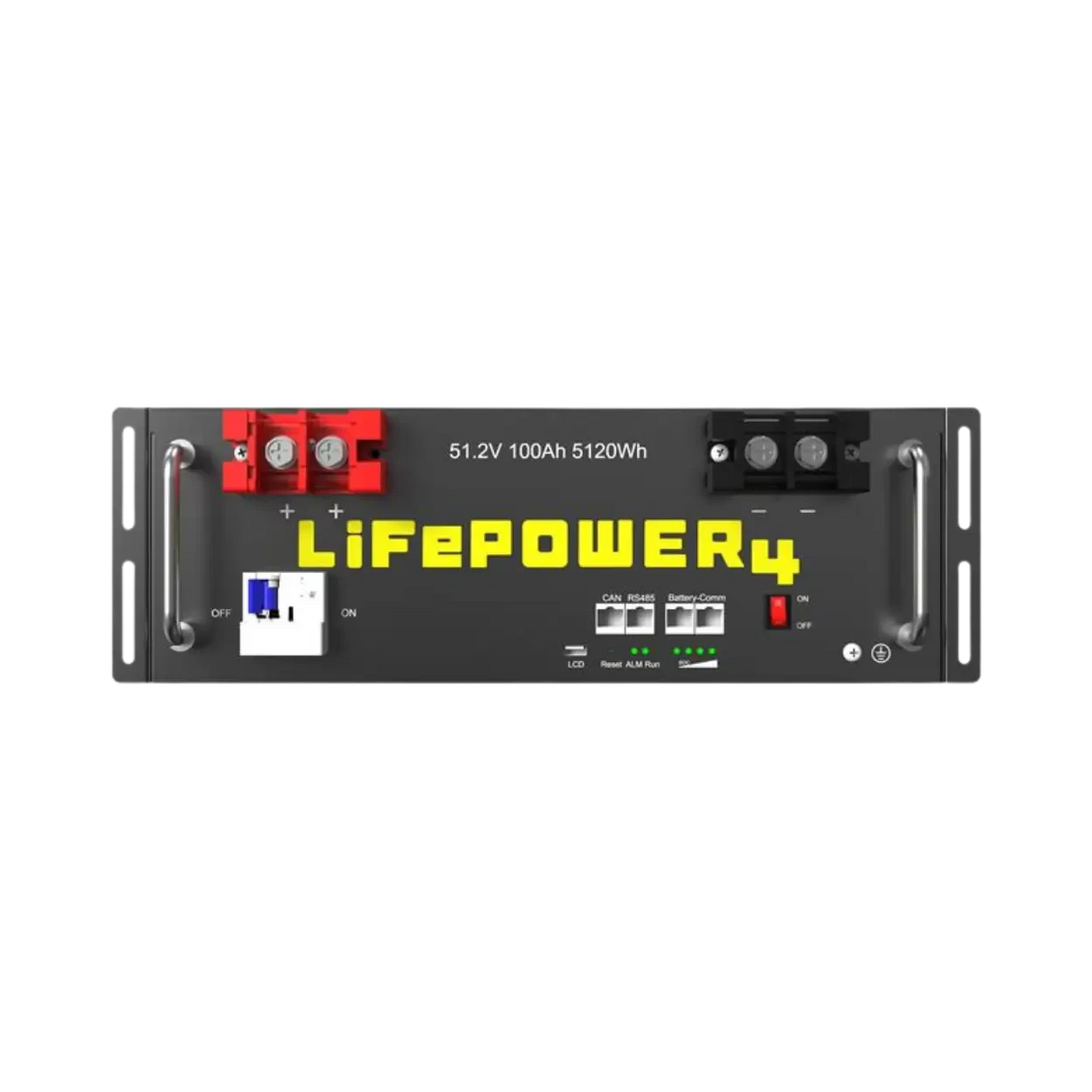

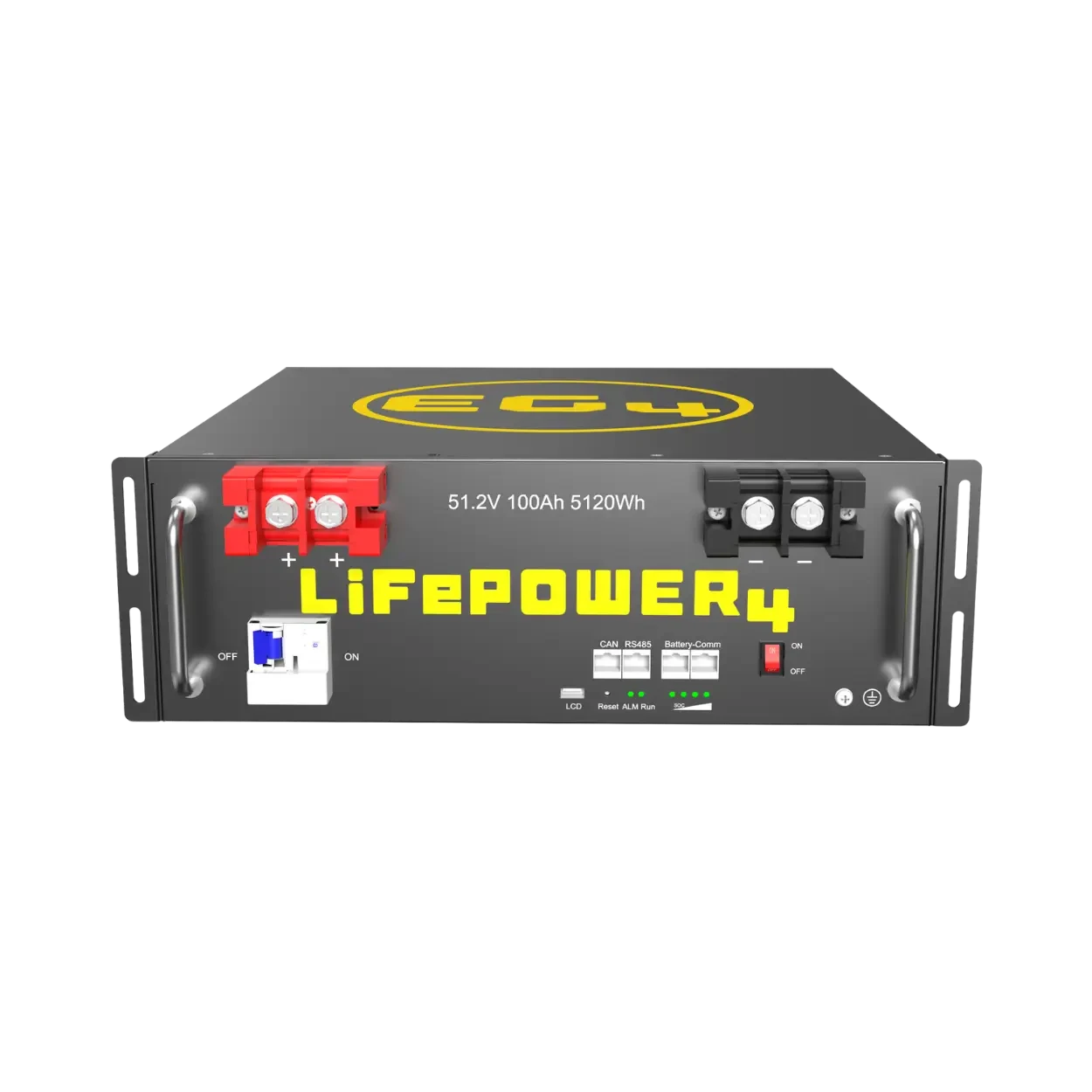

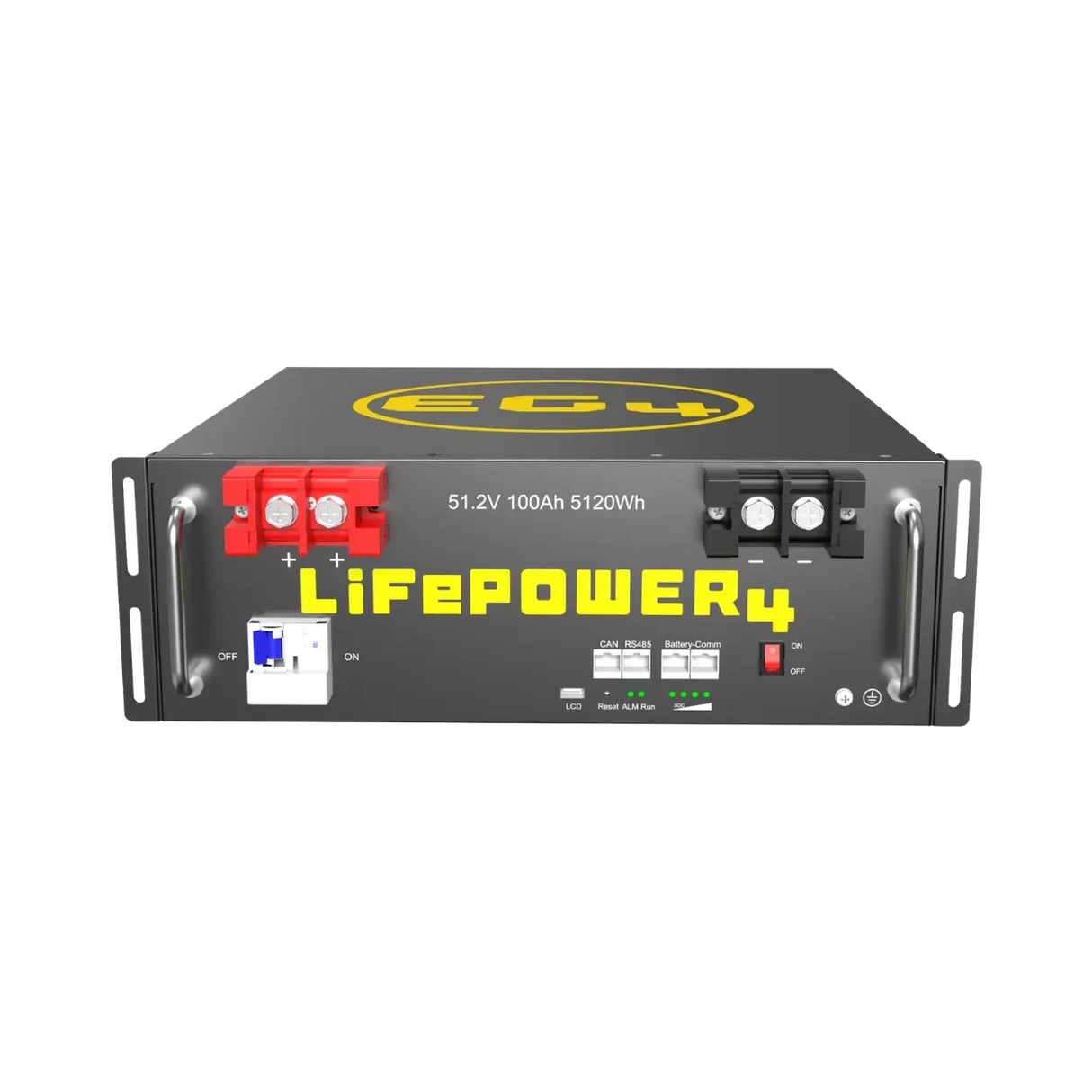

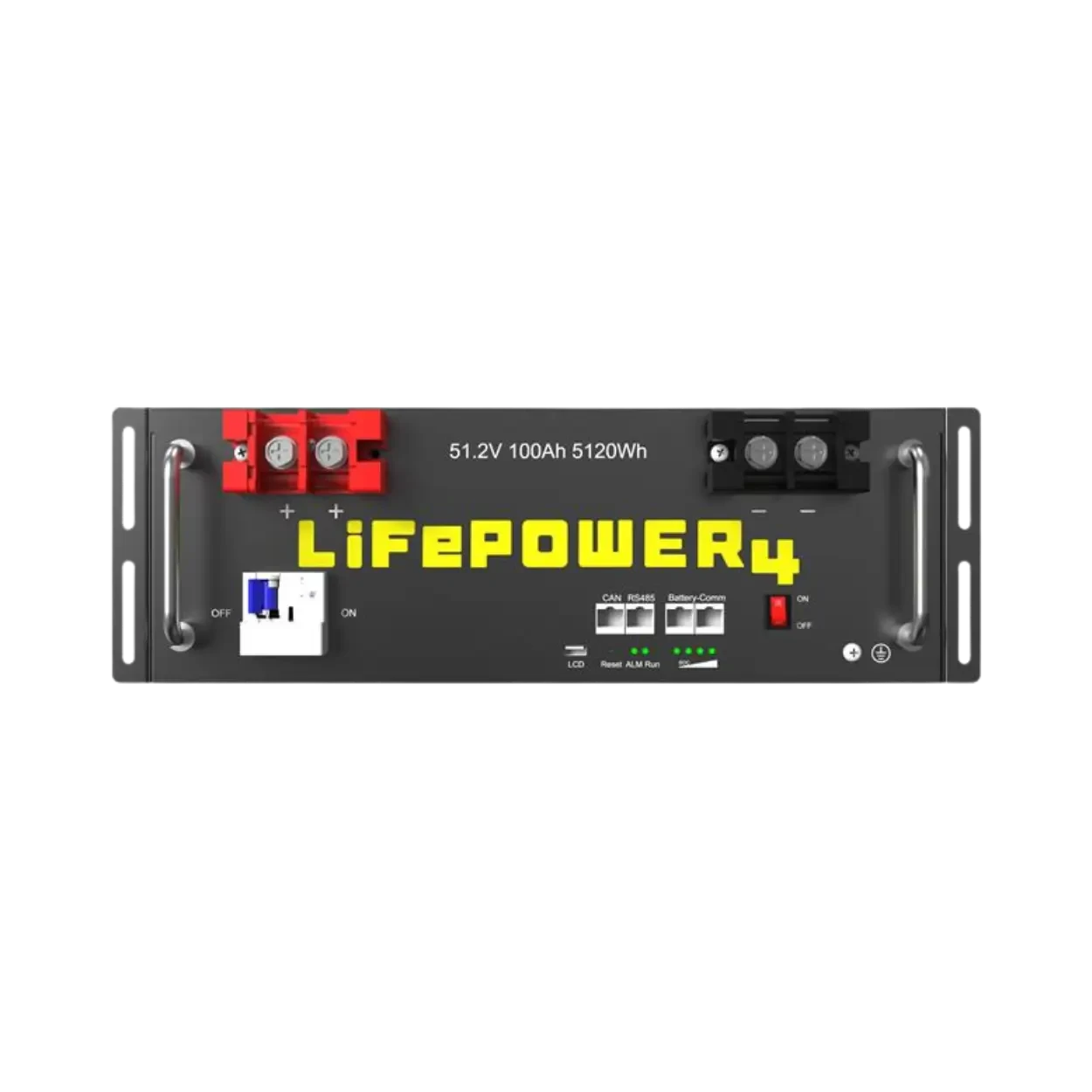

EG4 LifePower4 48V V2 100Ah Server Rack Battery

Regular price $1,526.99
Shipping calculated at checkout.

Available to ship Delivery to Usually ships within 2 business days. Allow additional time to arrive at your address.

Questions about this product

Delivery and shipping

Orders are typically processed within 1 to 2 business days from the time of purchase, excluding holidays and weekends.

Shipping times and cost will vary depending on the product and your location.

On average:

Ontario and Quebec: 2 to 5 business days

Western Canada: 4 to 7 business days

Atlantic provinces: 4 to 8 business days

Northern or remote areas: Contact us to confirm

The EG4 LifePower4 48V V2 100Ah Server Rack Battery retains the robust performance of the original model, now with enhanced features for improved user experience and system integration, including the newly added auto addressing feature. Built with 16 UL-recognized 3.2V LiFePO4 cells, this battery provides >6,000 cycles at 80% Depth of Discharge (DoD), a nominal voltage of 51.2V, and a 5.12kWh capacity. Its 100A Battery Management System (BMS) supports parallel connections of up to 64 units, making it adaptable for larger systems

Features & Benefits

Built On a Proven Foundation: Retains robust architecture and high performance of its predecessor.

Convenient Control: Equipped with a BMS communication on/off switch

Customizable Integration: New six position DIP switch allows convenient inverter and battery configuration

Streamlined Connectivity: Additional terminal connections with two positive and two negative terminals

Built-In Safety Feature: E-Stop (Emergency Stop) rapid shutdown functionality for secure operation in high-risk settings

Enhanced Safety: Dual on-board fire arrestors for added peace of mind

Auto Addressing: Now includes the auto-addressing feature for easy installation when communicating with other EG4 Electronics batteries and inverters in closed-loop communicationKey Specifications

Nominal Voltage: 51.2V Energy Capacity: 5.12kWh Charge Capacity: 100Ah BMS: Internal 100A Battery Management System Certified Cells: 16 UL-recognized 3.2V cells in series. Closed-Loop Support Up to 64 batteries Total Capacity: 327.7kWh Safety Certified: UL 1973, UL 9540A, and UL 9540 pending Design Life: Tested for >6,000 deep discharge cycles at 80% Depth of Discharge (DoD) Dimensions: 6.1×19×17.4 in (155×442×470mm) Weight: 99.6 lbs. (45.2kg) Warranty: 10 year
