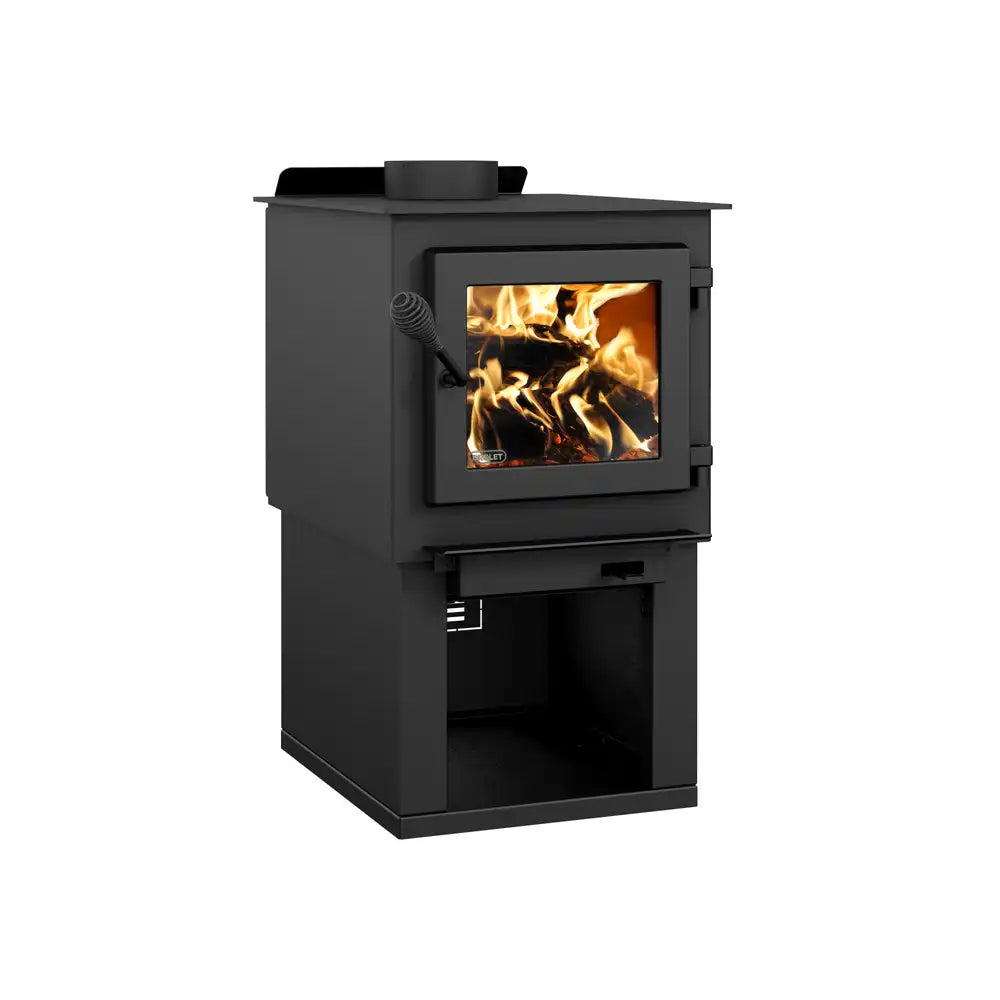

Drolet - DECO NANO

The Deco Nano can heat up to 1,200 ft² with 45,000 BTU/h of maximum power. EPA certified at 1.8 g/h, this non-catalytic wood stove stands out with its modern design, its higher-than-average height and its practical storage space under the appliance. The bottom of its combustion chamber is deeper than other models in its category and allows a greater accumulation of ashes, and thus able to empty them less frequently.

Included: pedestal with log storage, top air deflector, ceramic glass, cast iron door with adjustable hinges, ash lip, air damper, stainless steel heat shield

▪ Up to 5 hours burn time ▪ Up to 17" logs ▪ 1.55 ft³ firebox ▪ EPA certified ▪ Proudly made in Canada ▪ Limited lifetime warranty ▪ Certified for mobile home and alcove installation ▪ This model qualifies for the US tax credit

Any installation must be done according to the data and drawings detailed in the owner’s manual.

Fuel type Dry cordwood (16" recommended)

Recommended heating area(9)

250 - 1,200 ft²

Overall firebox volume 1.8 ft³

EPA loading volume 1.55 ft³

Maximum burn time(9)

5 h

Maximum heat output-dry cordwood(4)

45,000 BTU/h (13.19 kW)

Minimum overall heat output rate(4) (5)

12,124 BTU/h (3.55 kW)

Maximum overall heat output rate(4) (5)

26,700 BTU/h (7.83 kW)

Average overall efficiency-dry cordwood (HHV)(5) (6)

74 %

Average overall efficiency-dry cordwood (LHV)(5) (7)

79 %

Optimum efficiency(1) (2)

80 %

Optimum heat transfer efficiency(8)

79 %

Average particulate emission rate(3)

1.8 g/h

Average CO(10)

74 g/h

Size Small

Alcove installation approved Yes

Mobile home approved Yes, with fresh air intake

Certified according to applicable standards By an accredited laboratory (CAN/USA)

Overall dimension (Width) 18 1/2"

Overall dimension (Height) 32 1/2"

Overall dimension (Depth) 29 1/8"

Premium quality blower included (CFM) Optional

Combustion technology Non-catalytic

Stainless-steel secondary-air system Yes

Flue outlet diameter 6"

Distance-center of the flue outlet to back unit 6 5/8"

Distance-center of the flue outlet to side unit 9 1/4"

Recommended chimney diameter 6"

Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)

Minimum chimney height 12'

Door type Single, glass with cast iron frame

Door opening size (Width) 12"

Door opening size (Height) 7 5/8"

Glass type Ceramic glass

Glass surface - W x H 10 1/4" x 8 3/4"

Steel thickness-body 3/16"

Steel thickness-top 1/4"

Firebox size (Width) 14 1/4"

Firebox size (Height) 11 3/4"

Firebox size (Depth) 19 1/8"

Log positioning Loading over depth

Maximum log length 17"

Firebox lined with refractory bricks Yes

Baffle type High quality vermiculite

High-efficiency certified appliance Yes, EPA 2020 approved

Canadian Standard (emissions) CSA B415.1-10

USA Standard (emissions) EPA

Canadian Standard (safety) ULC S627

USA Standard (safety) UL 1482, UL 737

Warranty Limited lifetime

Shipping weight 281 lb (128 kg)

Links:

**Price does not incliude vent kit. Please message to inquire as we need to size per application**
