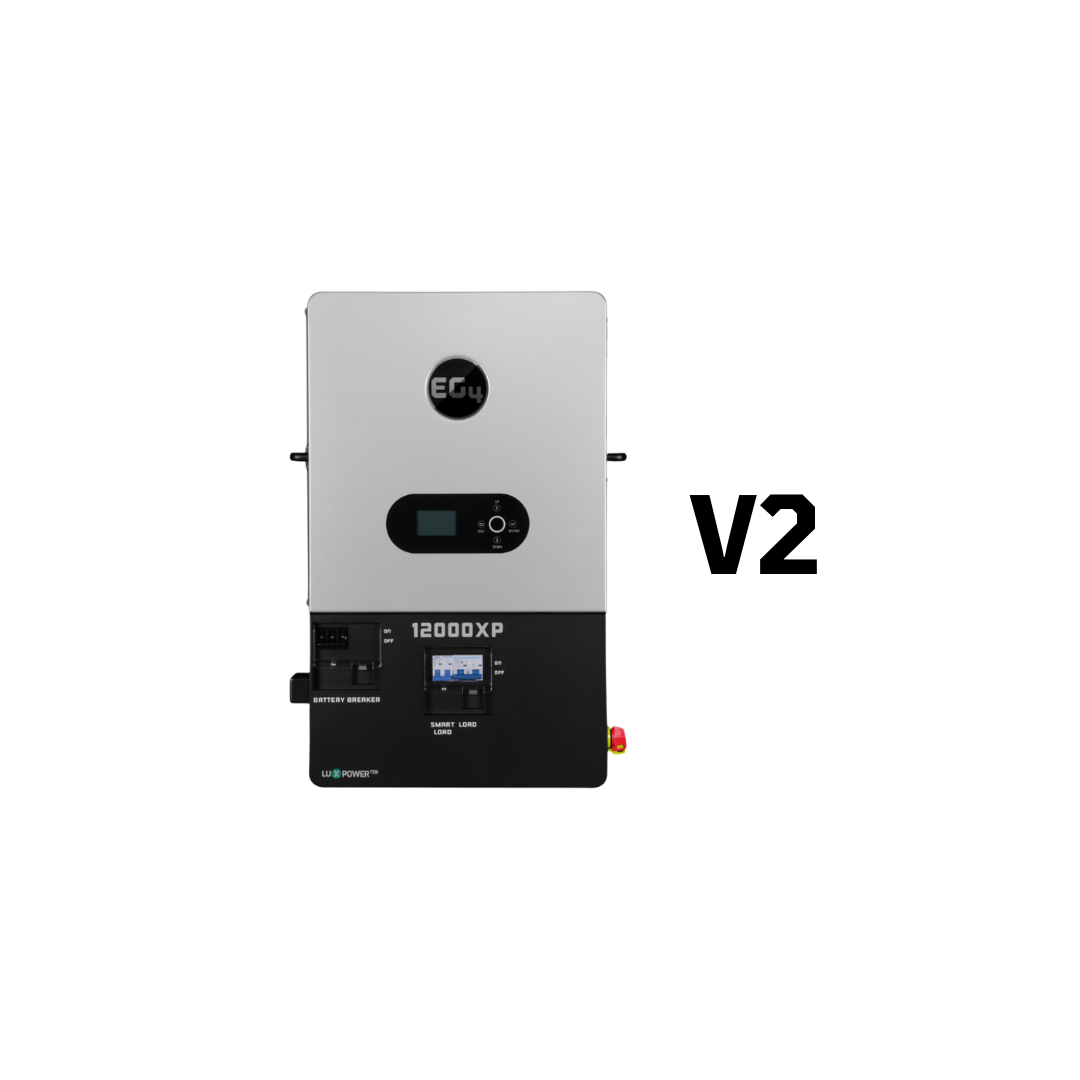

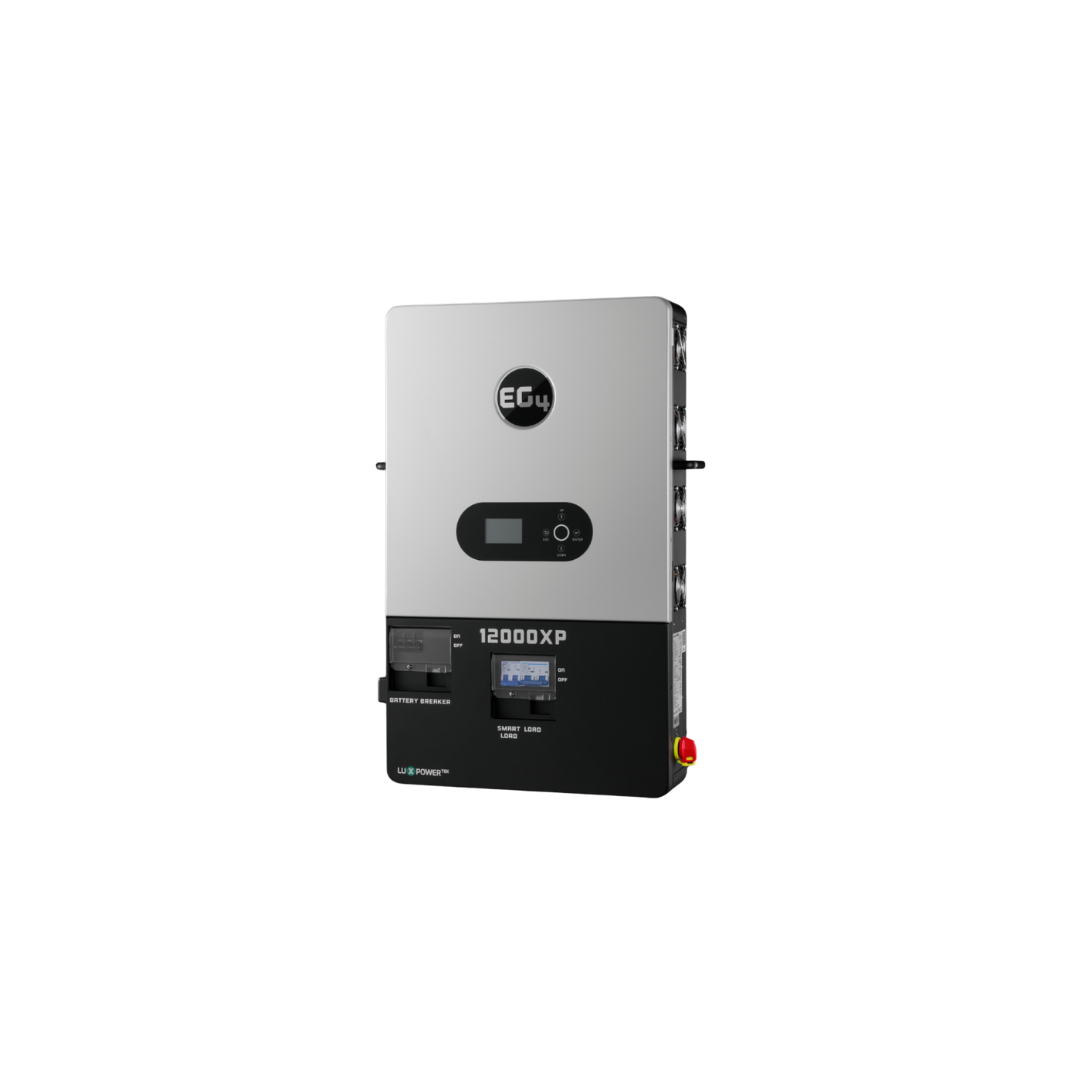

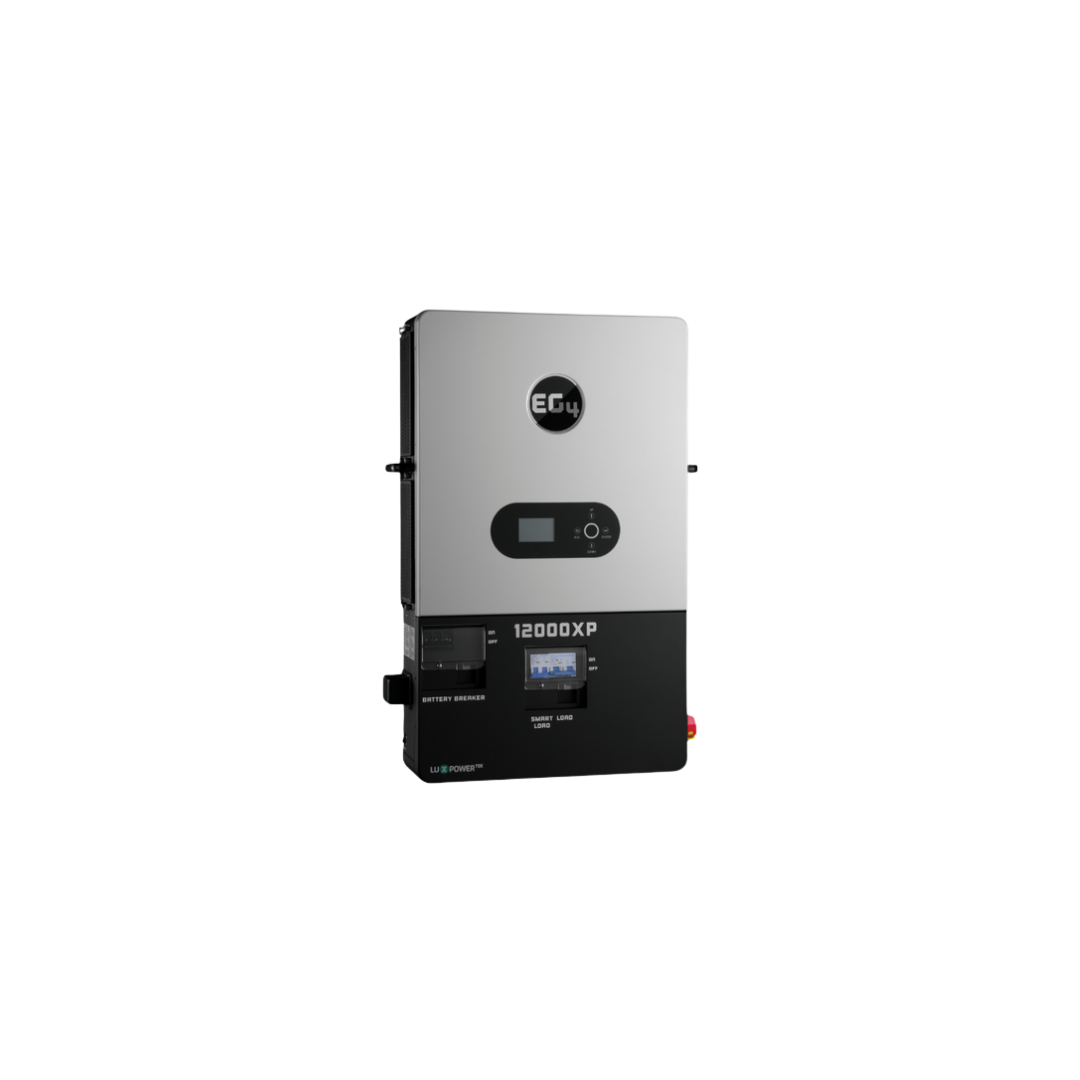

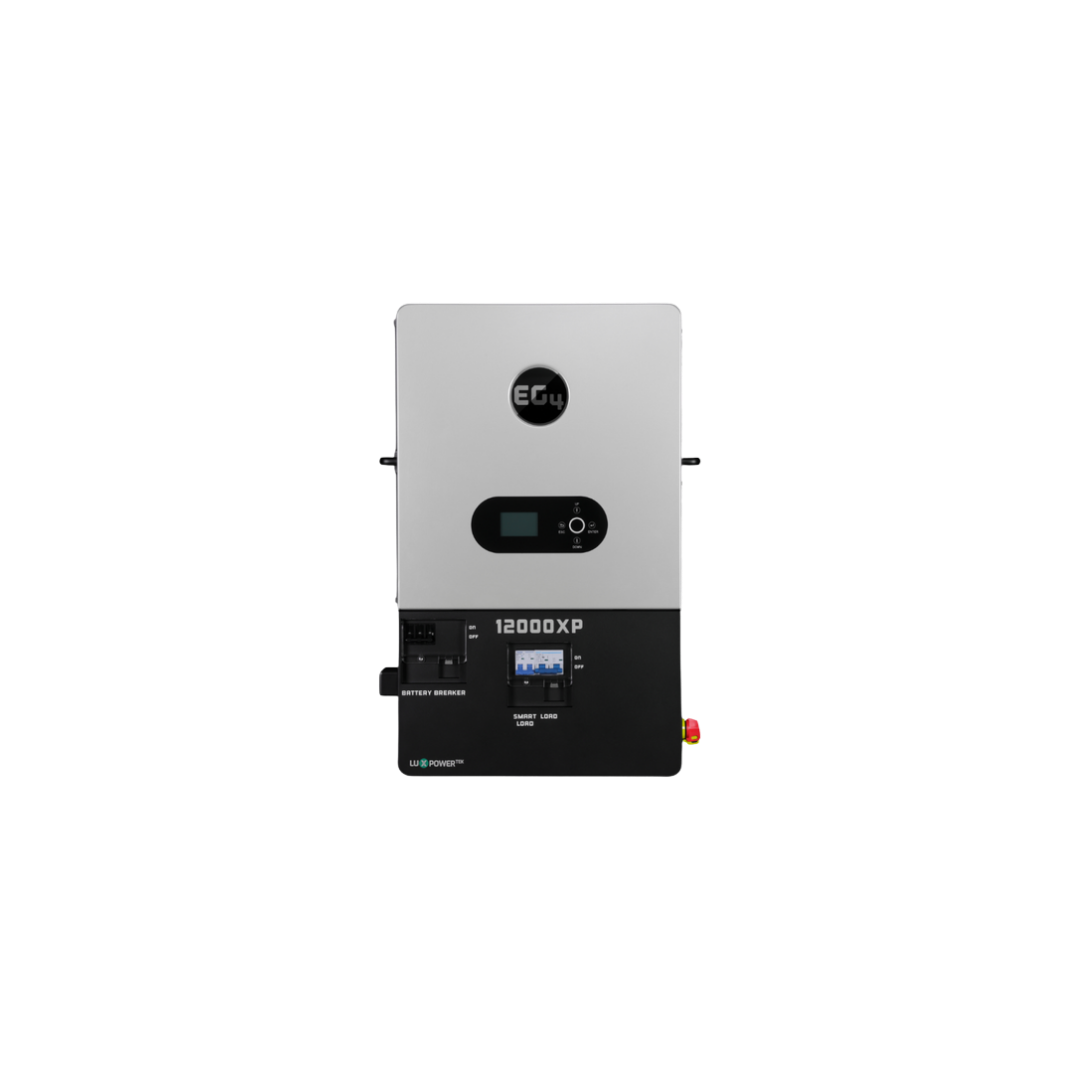

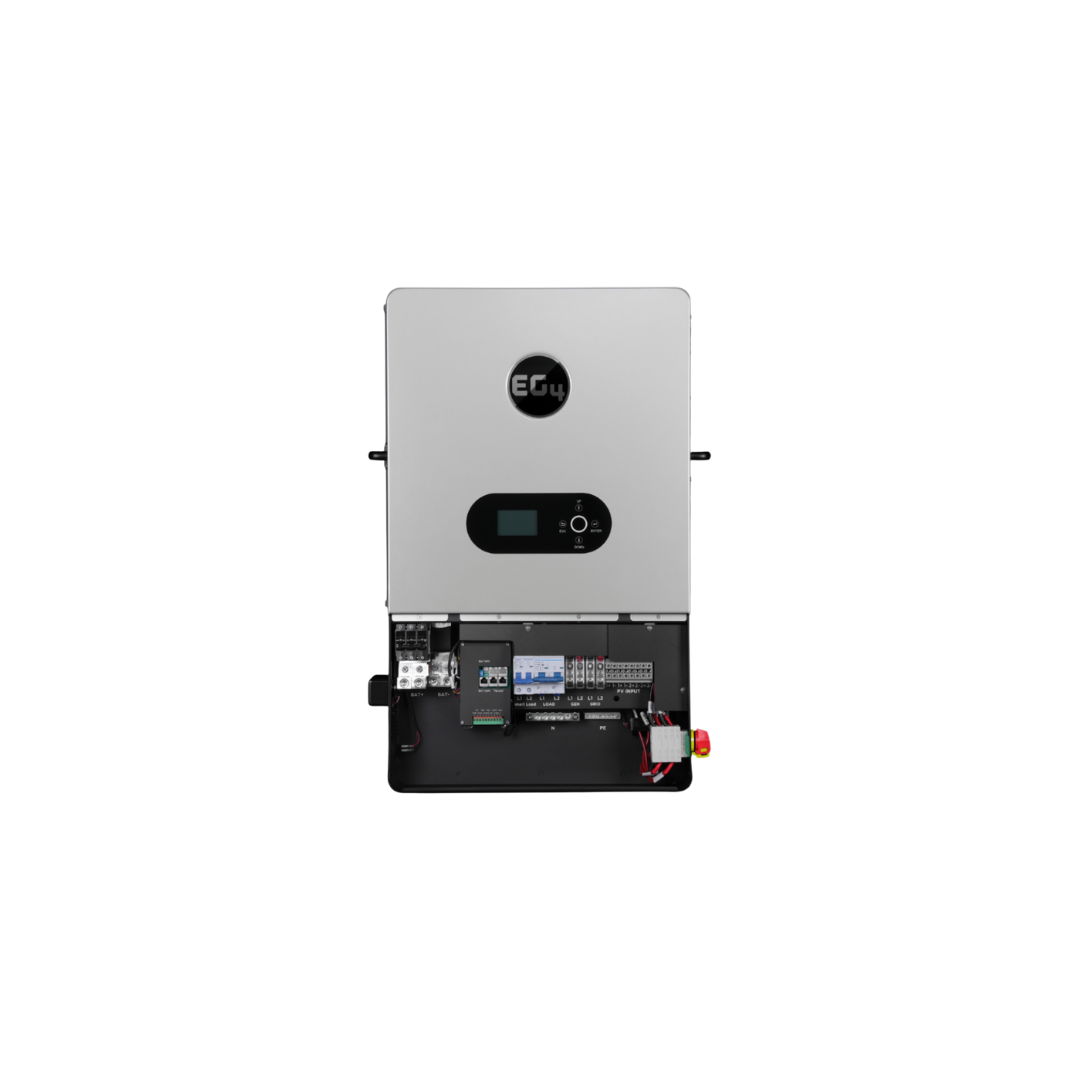

EG4 12000XP V2 Off-Grid Inverter | 48V Split Phase | 24kW PV Input | 15kW Power Output

Regular price $3,140.00
Shipping calculated at checkout.

Questions about this product

Delivery and shipping

Orders are typically processed within 1 to 2 business days from the time of purchase, excluding holidays and weekends.

Shipping times and cost will vary depending on the product and your location.

On average:

Ontario and Quebec: 2 to 5 business days

Western Canada: 4 to 7 business days

Atlantic provinces: 4 to 8 business days

Northern or remote areas: Contact us to confirm

✔︎ Available for pickup at our showroom.
Canadian Off Grid — 4855 Union Road, Beamsville ON L3J 0T8

✔︎ Available to ship

12000xp

12000xp in cabin

Maximum Power. Zero Compromise. Built to Last.

The EG4 12000XP is a high-capacity, split-phase off-grid inverter engineered to provide reliable, continuous power for homes, cabins, and remote properties. As the only ESS off-grid system of its kind, it supports up to 24 kW of PV input without a combiner box and maximizes solar production through dual MPPT tracking. Built for demanding off-grid environments, it delivers advanced system control, dependable battery integration, and scalable performance for long-term energy independence.



Please note that this model is currently undergoing certification in Canada. Please stay tuned for further updates.



Key Benefits:

  • High-Voltage PV Input: Accepts up to 480 VDC and 24 kW of solar input, reducing cabling requirements and simplifying system design.
  • Dual MPPT Optimization: Maximizes solar energy production by independently tracking two PV strings for stable performance in changing conditions.
  • Built-In Wi-Fi Monitoring: Allows remote system monitoring and adjustments through the EG4 App or Monitor Center for added convenience and visibility.
  • Closed-Loop Battery Communications: Integrates directly with EG4 48V batteries and supported brands for accurate charging, protections, and safe operation.
  • Smart Load Port: Manages dedicated circuits or appliances through load shedding, AC coupling, or selective power delivery to increase system efficiency.
  • Parallel Capability: Supports up to 16 units in parallel, enabling large systems up to 240 kW of total output.
  • NEC-Compliant Safety: Rapid shutdown–ready (RSD) to meet NEC 690.12 safety requirements.

Use Cases:

The EG4 12000XP is suited for residential homes, cabins, off-grid properties, and remote installations requiring dependable, high-output power. It also supports commercial and light industrial setups that need scalable energy storage and multi-inverter configurations. Ideal for hybrid systems, backup power applications, and full off-grid systems.

Tech Specs:

  • Nominal Power Output: 15,000W with PV input* / 12,000W without PV
  • PV Input Capacity: Up to 24,000W (480 VDC max)
  • Recommended Battery Capacity: >400Ah per inverter
  • Battery Communications: Closed-loop compatible with EG4 48V batteries + supported brands
  • Connectivity: Plug-in Wi-Fi module for EG4 App / EG4 Monitor
  • Dimensions: 34.25 × 20.87 × 5.91 in
  • Weight: 104.7 lbs
  • Operating Temperature: 32°F – 113°F (0°C – 45°C) @ full load

Model Note: 15 kW output is available only on model number IV-15000-XP-IN-01


Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Compare Off Grid Inverters

A table comparing the facets of 3 products
Facet
EG4 3kW Off-Grid Inverter | 3000EHV-48 | 3000W Output | 5000W PV Input | 500 VOC Input - Canadian Off Grid
EG4 3000EHV-48 3kW Off-Grid Inverter
View details
EG4 6000XP Off Grid| 8000W PV  Input | 6000W Output | 48V 120/240V Split Phase | All-In-One Solar Inverter - Canadian Off Grid
EG4 6000XP Off Grid| 8000W PV Input | 6000W Output | 48V 120/240V Split Phase | All-In-One Solar Inverter
View details
EG4 12000XP Off-Grid Inverter | 48V Split Phase | 24kW PV Input | 12kW Power Output - Canadian Off Grid
EG4 12000XP Off-Grid Inverter | 48V Split Phase | 24kW PV Input | 12kW Power Output
View details
Price
Price
Regular price $744.00
Sale price $1,688.00 Regular price $1,940.00
Sale price $2,957.00 Regular price $3,034.00
Max Ac Input Power
Max Ac Input Power
3,600W
9,000W
24,000W
MPPTs
MPPTs
1
2
2
Max PV Voltage
Max PV Voltage
500
480
500
Warranty
Warranty
3 year
5 year
5 year
Great for
Great for
Bunkies, small cabins, trailers and small shops
Bunkies, small cottages, trailers and seasonal properties
Full-time off-grid cottages and medium-sized homes.
Rating
Rating
(2)
(5)
(7)
