EG4 12000XP Off-Grid Inverter | 48V Split Phase | 24kW PV Input | 12kW Power Output

Regular price $3,034.00
Shipping calculated at checkout.

Questions about this product

What is the EG4 12000XP and how much power does it deliver?

It’s a 48 V split-phase 120/240 VAC inverter-charger with 12,000 W continuous output and up to 18,000 W surge. You can parallel up to 16 units for larger systems.

How much solar can I connect and what are the MPPT limits?

Two MPPTs accept 100–480 V DC input (MPPT window 120–385 V) with 35 A usable per MPPT. It utilizes up to 24 kW of PV (12 kW per MPPT) and EG4 recommends up to 28 kW total PV. Always check cold-weather Voc.

What battery bank size is recommended?

It’s a 48 V system with up to 250 A charge/discharge. EG4 recommends more than 400 Ah of battery per inverter. Closed-loop comms are available with supported batteries.

What is the operating temperature and typical noise?

Operating ambient 0–45°C at full load. Storage −15–60°C. Typical noise is under 60 dB, so plan a ventilated indoor space.

Does it support fast transfer and generators or AC coupling?

Transfer time is under 10 ms for a single unit (under 20 ms paralleled). It accepts grid or generator input with up to 90 A generator bypass and a recommended generator size of 6–15 kW. The Smart Load port supports AC-coupled input when configured.

Delivery and shipping

Orders are typically processed within 1 to 2 business days from the time of purchase, excluding holidays and weekends.

Shipping times and cost will vary depending on the product and your location.

On average:

Ontario and Quebec: 2 to 5 business days

Western Canada: 4 to 7 business days

Atlantic provinces: 4 to 8 business days

Northern or remote areas: Contact us to confirm

✔︎ Available to ship
Most items ship from our supplier within 2 business days. Additional delivery time may apply depending on your location.

FREE SHIPPING

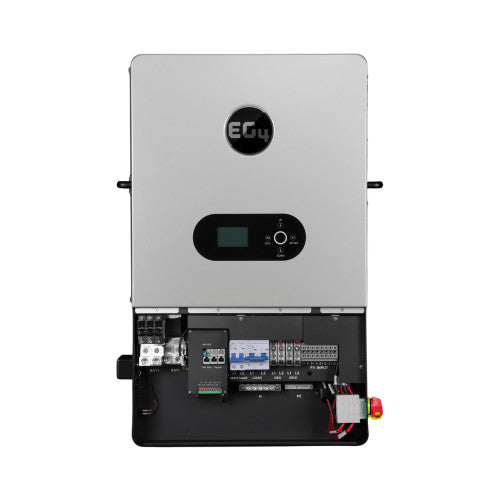

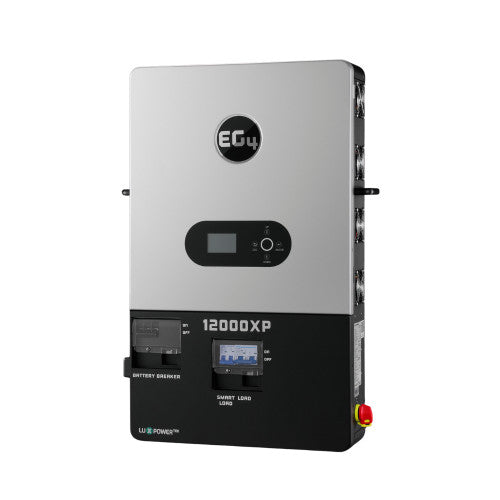

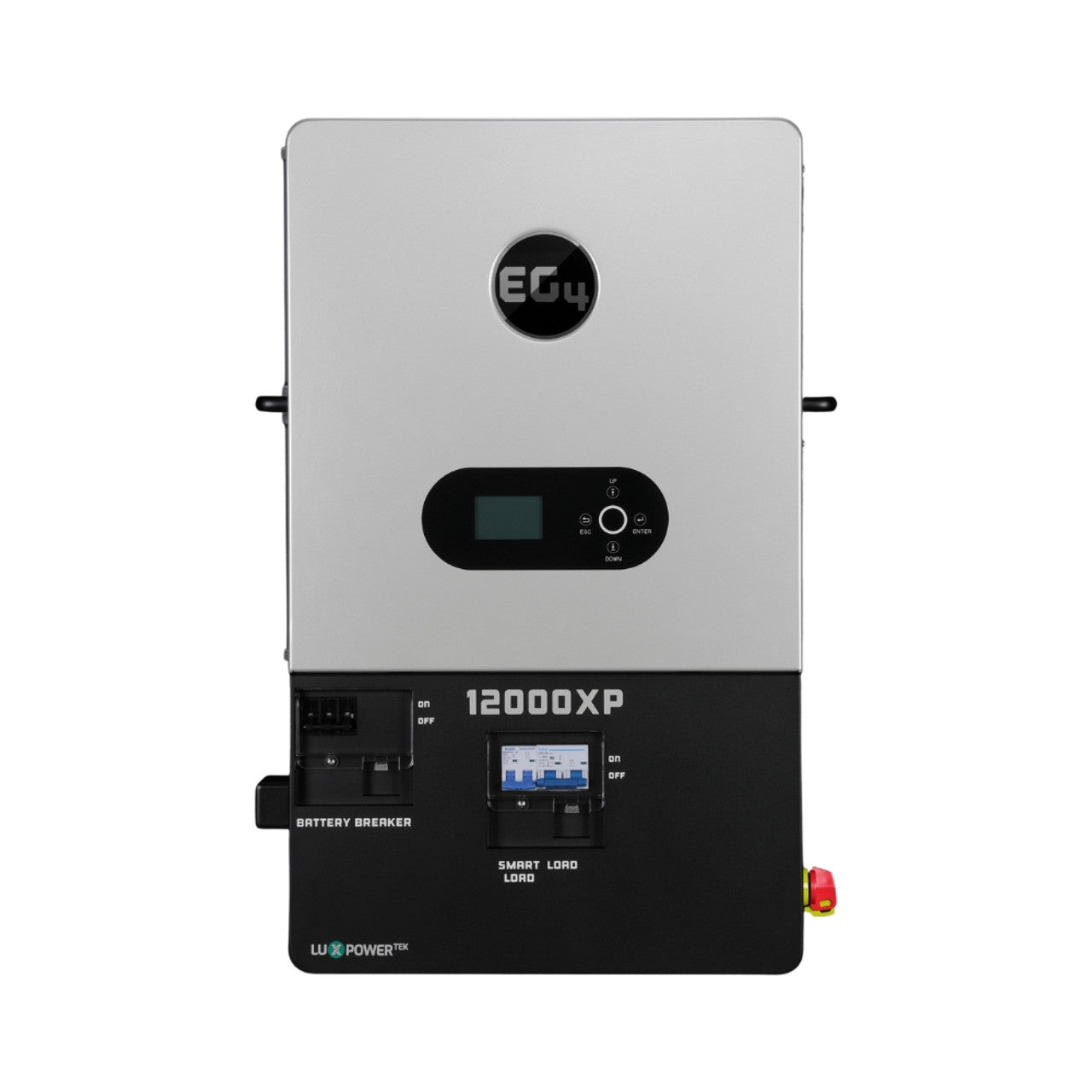

EG4 12000XP Off-Grid Inverter

The EG4 12000XP is designed for anyone seeking an efficient, all-in-one off-grid inverter with high power output, durable construction, and advanced communication features. Capable of running entirely off the grid or using grid electricity, this inverter is perfect for both residential and commercial setups.

Key Features:

  • High Input Voltage (480VDC): Supports high-voltage input, reducing the need for extensive cabling and allowing for up to 24kW PV input without a combiner box.

  • Dual MPPT Design: Ensures optimal solar energy utilization, providing efficiency and stability under varying sunlight conditions.

  • Plug-in Wi-Fi Capability: Monitor and adjust settings remotely using the EG4 app or Monitor system, adding convenience and control from any location.

  • Closed-Loop Communication: Seamlessly integrates with EG4 48V batteries and other supported brands, offering enhanced system performance and safety.

  • Rapid Shut Down Compliance: Equipped with NEC 690.12-ready rapid shutdown (RSD) capabilities for compliance and peace of mind in critical situations.

Performance Highlights:

  • 12kW Power Output with Surge Capacity up to 18kW: Delivers robust, consistent power with the ability to manage heavy-duty appliances and equipment in off-grid settings.

  • Expandable Power Options: Parallel up to six units to reach a 72kW system, providing the flexibility to scale power output as needed.

  • High Efficiency Rates: Enjoy an impressive 99% MPPT efficiency, maximizing energy harvest and minimizing energy loss.

Technical Specifications:

  • AC Input: 120/240VAC | 50/60 Hz

  • Max Continuous Output: 12kW

  • Surge Capacity: 18kW (5 seconds)

  • Battery Compatibility: Lead-Acid/Lithium, with a recommended minimum of 400Ah per inverter

  • Operating Temperature: 32°F – 113°F (0°C – 45°C)

  • Protection Features: PV Reverse Polarity, Over-Voltage, and Surge Protection

  • Warranty: 5 years

Ideal Applications:

  • Residential Off-Grid Living: Perfect for homes wanting to break free from grid reliance.

  • Remote Worksites and Cabins: Ensures a steady power supply, even in isolated locations.

  • Commercial and Industrial Use: Robust enough to handle demanding off-grid requirements.

Why Choose the EG4 12000XP? With high output power, advanced safety features, and remote management capabilities, the EG4 12000XP off-grid inverter provides an industry-leading solution that meets all your off-grid energy needs. Engineered for efficiency and durability, this inverter is your best choice for reliable and scalable power.
